AL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer Diameter

Model Number : AL25

Brand Name : SUMA

Place of Origin : Jiangsu, China

MOQ : 2

Price : $55-72

Precision Rating : P6

Seals Type : Open

Type : roller

Material : Steel, GCr15

Torque capacity : 288Nm

Inner Overrunning speed : 2100r/min

Outer Overrunning speed : 4500r/min

Inner Diameter : 25mm

Outer Diameter : 90mm

Thickness : 60mm

Shaft Diameter : 25mm

Height : 60mm

Drag torque : 14Ncm

Number of rollers : 6

Weight : 1.5kg

Contact Now

AL25 Freewheel Overrunning Clutch One Way Roller Bearing

AL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer Diameter

Product Description

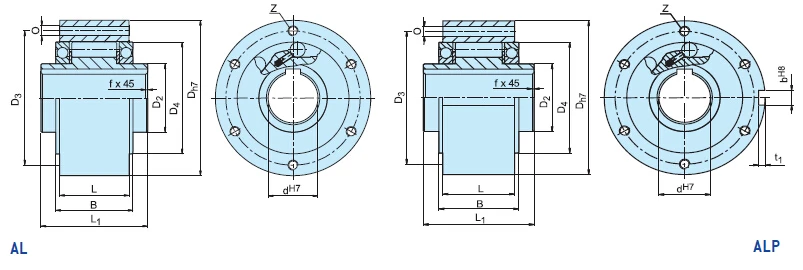

Structure of AL one way bearing

Types AL, ALP are roller type freewheels. These units are part of the Stieber modular system. They are bearing supported, using two 160.. series bearings, and require oil lubrication.

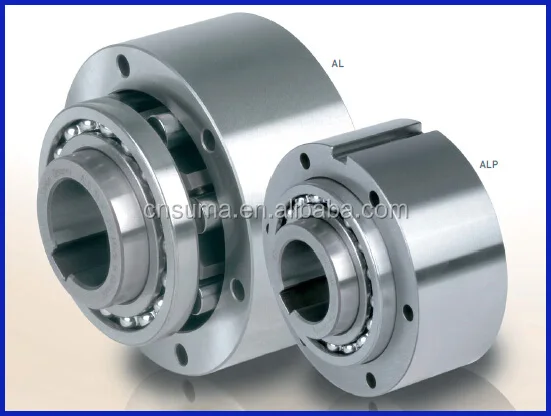

Types AL, ALP are identical except that type ALP has a keyway on the outside diameter to transmit the torque.

Available Shaft Diameter: 12-250mm

Specification

Model AL25
Materail
 GCr15
Shaft Diameter
 25mm
Outer diameter
 90mm
Height
 60mm
Torque capacity
 288Nm
Inner race overrunning speed 2100r/min
Outer race overrunning speed 4500r/min
Application Backstop / Overrunning
Package Carton package / Wooden package
Delivery time 5-7 days
Payment terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of al one way bearing for your choice

AL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer Diameter

Type Size Overrunning speed Number Weight Drag torque
dH7 TKN1) nimax2) namax3) Dh7 D2 D4 D3 O z L 1 L4) B t1 TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]

AL

ALP

 12 55 4000 7200 62 20 42 51 5.5 3 42 20.3 27 2.4 0.5 3.4
15 125 3600 6500 68 25 47 56 5.5 3 52 30.3 34.1 2.9 0.8 4.1
20 181 2700 5600 75 30 55 64 5.5 4 57 34.3 39.1 3.5 1 8
25 288 2100 4500 90 40 68 78 5.5 6 60 37.3 42.1 4.1 1.5 14
30 500 1700 4100 100 45 75 87 6.6 6 68 44.3 49.1 4.1 2.2 23
35 725 1550 3800 110 50 80 96 6.6 6 74 48.3 54.1 4.7 3 60
40 1025 1150 3400 125 55 90 108 9 6 86 56.3 62.1 4.9 4.6 72
45 1125 1000 3200 130 60 95 112 9 8 86 56.3 62.1 5.5 4.7 140
50 2125 800 2800 150 70 110 132 9 8 92 63.3 69.1 5.5 7.2 180
55 2625 750 2650 160 75 115 138 11 8 104 67 73.1 6.2 8.6 190
60 3500 650 2450 170 80 125 150 11 10 114 78 84 6.8 10.5 240
70 5750 550 2150 190 90 140 165 11 10 134 95 103 7.4 13.5 320
80 8500 500 1900 210 105 160 185 11 10 144 100 108 8.5 18.2 330
90 14500 450 1700 230 120 180 206 14 10 158 115 125 8.7 28.5 650
100 20000 350 1450 270 140 210 240 18 10 182 120 131 9.9 42.5 830
120 31250 250 1250 310 160 240 278 18 12 202 140 152 11.1 65 1080
150 70000 200 980 400 200 310 360 22 12 246 180 196 12.3 138 1240
200 175000 150 750 520 260 400 460 26 18 326 240 265 15 315 3800
250 287500 120 620 610 320 480 545 33 20 396 300 330 15 512 6100
ALM 25 388 2100 2800 90 40 68 78 5.5 6 60 37.3 42.1 4.1 1.7 22
30 588 1700 2500 100 45 75 87 6.6 6 68 44.3 49.1 4.1 2.5 37
35 838 1550 2400 110 50 80 96 6.6 6 74 48.3 54.1 4.7 3.2 66
Detailed Images

AL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer DiameterAL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer Diameter
AL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer DiameterAL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer DiameterAL25 Model One Way Bearing Freewheel Clutch with 25mm Shaft Diameter and 90mm Outer Diameter
FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
