P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

Model Number : CKA50110

Brand Name : SUMA

Place of Origin : Jiangsu, China

MOQ : 1

Price : $29-39

Precision Rating : P6

Seals Type : open

Type : sprag

Bore Diameter : 50 mm

Lubrication : Grease

Material : Chrome Steel, GCr15

Outer Diameter : 110 mm

Torque Capacity : 850 Nm

Inner Diameter : 50 mm

Thickness : 28 mm

Weight : 1.59 kg

Overrunning Speed : 525 r/min (inner race), 180 r/min (outer race)

Bearing Model : 6311

Nominal Torque : 850 Nm

Sprag Dimensions : 10x5.0 mm (outer race), 8x3.3 mm (inner race)

Contact Now

CKA50110 Sprag One Way Clutch Bearing

Product Description

Features of cka clutch bearing

CKA is a sprag type freewheel non-bearing supported . Bearings are required to support axial and radial loads, Units are delivered grease lubricated.

Product name

one way sprag clutch

Model

CK-A 50110

Material

GCr15

Inner diameter

50mm

Outer diameter

110mm

Thickness

28mm

Torque capacity

850Nm

Weight

1.59Kg

Package

Carton Box / Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union, Paypal

Delivery time

3-5 Days

Catalogue of cka clutch bearing for your choice

P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

Model

Nominal

Torque

Overrunning Limiting

Speed (r/min)

 Dimension [mm] Bearing Weight
Outer race Inner race
[N.m]

Inner

race

Outer

race

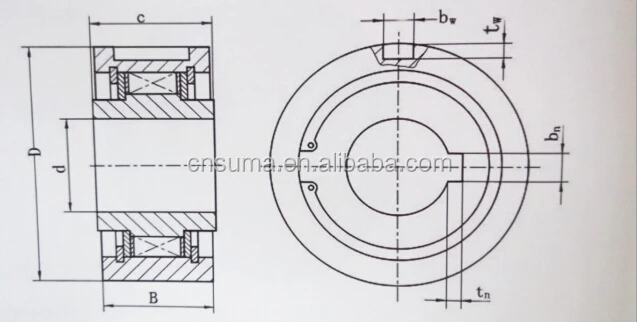

 D[h7] B bwxtw d[h7] C bnxtn [kg]
CK-A1542 54 1750 500 42 23 3x1.8 15 24 3x1.4 6302 0.17
CK-A1747 75 1575 400 47 23 3x1.8 17 24 3x1.4 6304 0.21
CK-A2052 95 1400 400 52 23 3x1.8 20 24 3x1.4 6305 0.25
CK-A2562 145 1260 350 62 23 4x2.5 25 24 4x1.8 6306 0.35
CK-A3072 208 1050 300 72 23 5x3.0 30 24 5x2.3 6307 0.47
CK-A3580 340 815 200 80 28 8x4.0 35 30 6x2.8 6308 0.69
CK-A4090 462 700 200 90 28 8x4.0 40 30 6x2.8 6309 0.87
CK-A45100 783 560 200 100 28 8x4.0 45 30 6x2.8 6310 1.07
CK-A50110 850 525 180 110 28 10x5.0 50 30 8x3.3 6311 1.59
CK-A60130 1050 490 180 130 34 10x5.0 60 36 8x3.3 6312 2.16
CK-A65140 1224 490 180 140 34 10x5.0 65 36 10x3.3 6313 2.49
CK-A70150 1850 455 150 150 40 10x5.0 70 42 10x3.3 6314 3.36
CK-A75160 2140 455 150 160 40 12x5.0 75 42 12x3.3 6315 3.81
CK-A80170 2450 420 150 170 40 12x5.0 80 42 12x3.3 6316 4.29
CK-A1250 31.5 1750 400 50 22 3x1.8 12 24 3x1.4 0.24
CK-A1855 50 1575 350 55 22 4x2.5 18 24 4x1.8 0.28
CK-A2060 63 1600 350 60 22 6x3.5 20 24 6x2.8 0.33
CK-A2563 100 1260 350 63 24 6x3.5 25 26 6x2.8 0.37
CK-A2563T 140 1260 350 63 30 6x3.5 25 32 8x3.3 0.68
CK-A2870 180 1050 300 70 30 8x4.0 28 32 8x3.3 0.6
CK-A3080T 340 875 200 80 30 8x4.0 30 32 8x3.3 0.75
CK-A3585 400 815 200 85 30 8x4.0 35 32 8x3.3 1
CK-A35100 780 875 200 100 32 10x5.0 35 34 10x3.3 1.34
CK-A35140 1000 490 180 140 35 8x4.0 35 35 10x3.5 3.28
CK-A40100 780 560 200 100 34 10x5.0 40 34 10x3.3 1.2
CK-A40110 850 700 180 110 32 10x5.0 40 34 10x3.3 1.19
CK-A50125 1000 490 180 125 36 14x5.5 50 35 14x3.8 2.21
CK-A50130 1050 560 180 130 36 14x5.5 50 38 14x3.8 3.02
CK-A55160 2000 455 150 160 52 16x6.0 55 55 16x4.3 6.96
CK-A58130 1050 490 180 130 36 14x5.5 58 38 14x3.8 2.6
CK-A60180 2000 420 140 180 52 18x6.0 60 52 18x4.4 7.4

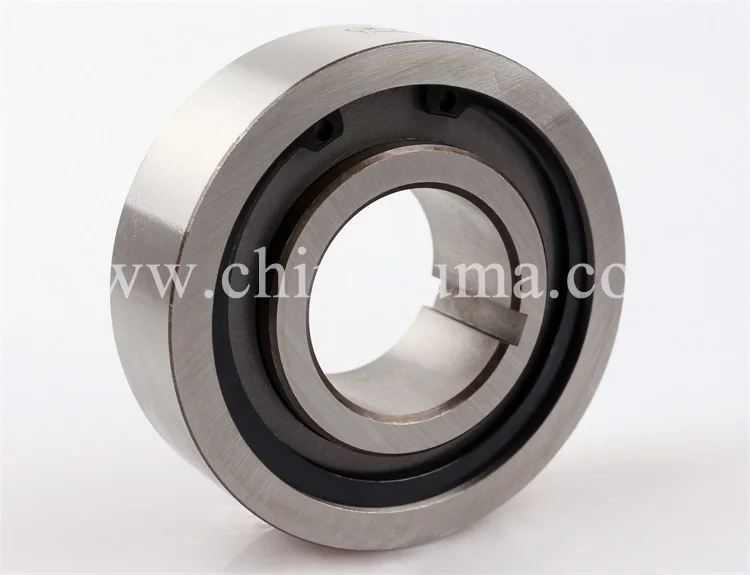

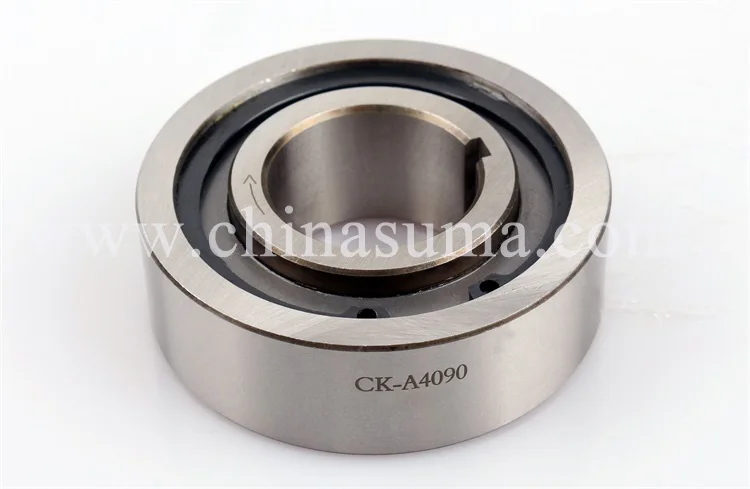

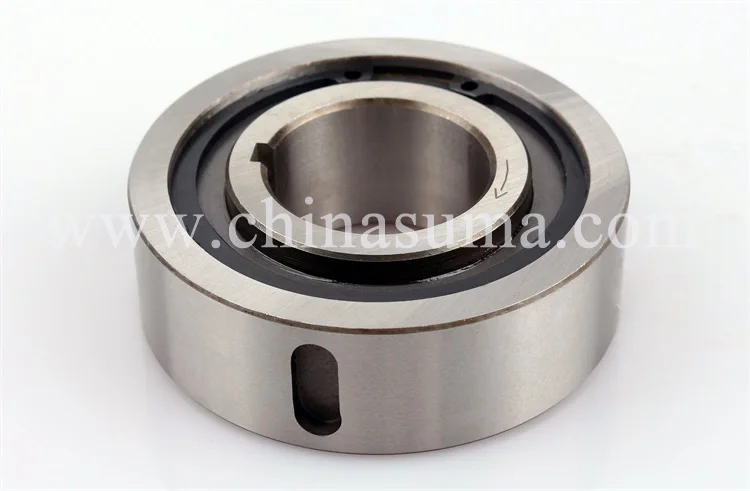

Detailed Images

P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer DiameterP6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer DiameterP6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow

P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

Certifications

P6 Precision Sprag One Way Clutch Bearing with 50mm Bore Diameter and 110mm Outer Diameter

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
