Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Product Categories
Changzhou Tianniu Transmission Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Model Number : csk25pp

Brand Name : SUMA

Place of Origin : Jiangsu, China

MOQ : 10

Price : $2.80-4.60

Precision Rating : P6

Seals Type : sealed

Material : GCr15

Weight : 0.14kgs

Outer Diameter : 52mm

Inner Diameter : 25mm

Overrunning Speed : 5200r/min

Thickness : 20mm

Torque Capacity : 85Nm

Structure : Sprag type

Dynamic Load : 10.7kN

Static Load : 5.46kN

Drag Torque : 2Ncm

Bearing Series : 6205

Keyway Quantity : 2

Contact Now

Sprag Freewheel Clutch Cheap Ball Bearing CSK25PP CSK25 PP/ CSK25PP2RS

Product Description

CSK series are sprag type one way freewheel bearings.

CSK P has one keyway in the inner side.

CSKPP has two keyways on both inner and outer side.

CSK P 2RS , has one keyway and seals to protect from water resistance, and it is 5mm wider than CSKP and CSKPP.

Product name

CSK25PP Ball bearing

Model

CSK25PP2RS

Material

GCr15

Inner diameter

25mm

Outer diameter

52mm

Thickness

20mm

Torque capacity

85Nm

Weight

0.14kg

Structure

Sprag type

Application

Textile machine, fans, ventilators, printing machine

Package

Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order

Catalogue of CSK25PP One way bearing for sale for your choice

Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Type Size Bearing series Bearing loads Weight Drag torque
dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10

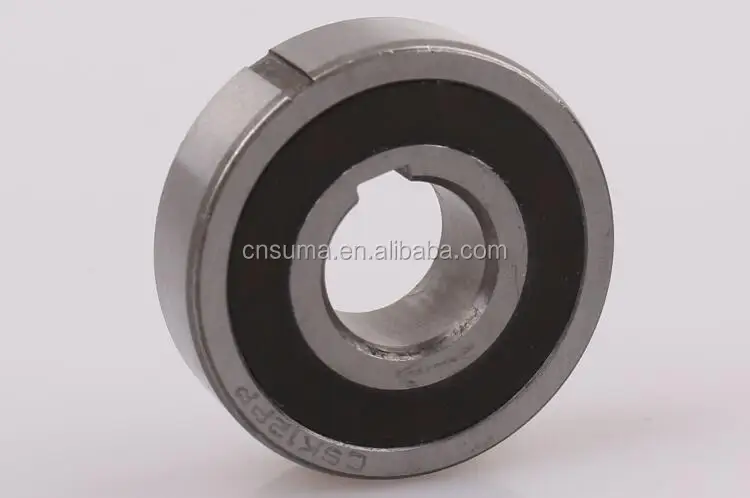

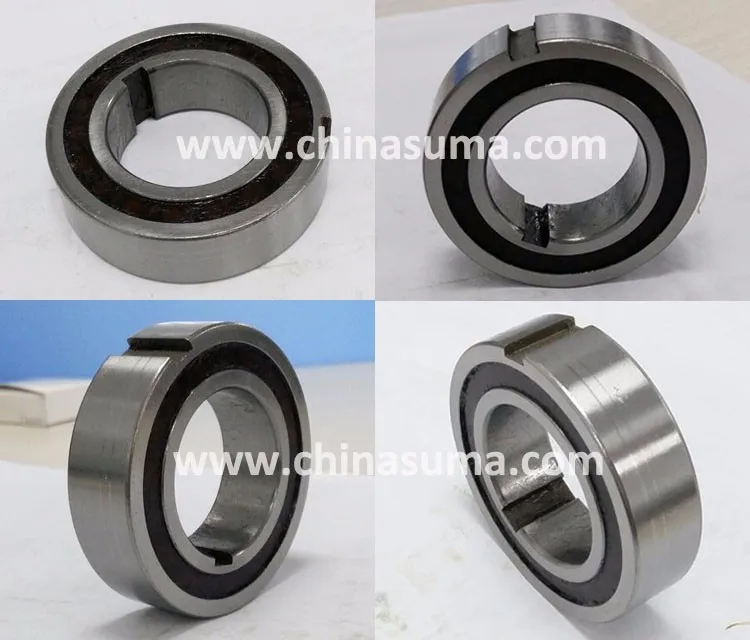

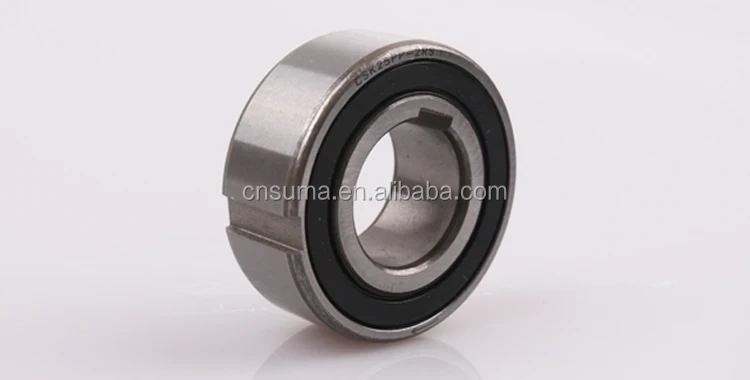

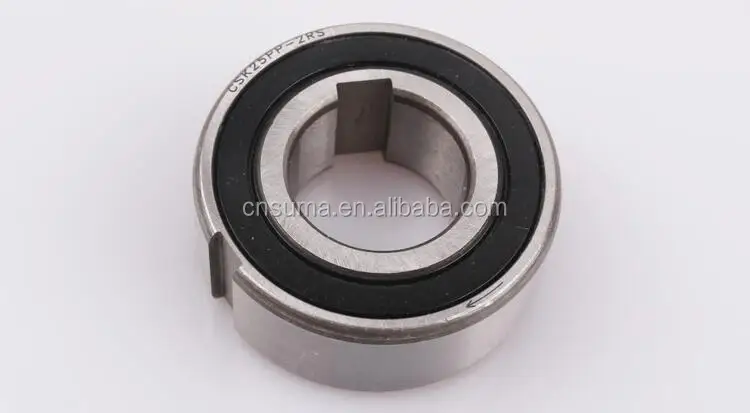

Detailed Images

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque CapacitySprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque CapacitySprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Certifications

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

Clients Visit

Sprag Freewheel Clutch One Way Bearing CSK25PP with 25mm ID 52mm OD and 85Nm Torque Capacity

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
