FPD473M FPD473Z One-Way Sprag Clutch Bearing with Precision Rating P6 60mm Inner Diameter and 78mm Outer Diameter

Name: FPD473M FPD473Z OneWay Sprag Clutch Bearing with Precision Rating P6 60mm Inner Diameter and 78mm Outer Diameter
Brand: SUMA
Price: 1 USD

Model Number : FPD473M FPD473Z

Brand Name : SUMA

Place of Origin : Jiangsu, China

MOQ : 3

Precision Rating : P6

Seals Type : Sealed

Type : sprag

Inner diameter : 60mm

Outer diameter : 78mm

Thickness : 34mm

Torque capacity : 543Nm

Material : ST14

Weight : 410g

Operating temperature : max. 100° C

Lubrication : Operative lifetime oil lubrication

Installation tolerances : Shaft h5; hub H6

Max speed : 1000 rpm

Dynamic load : 14128 N

Static load : 19896 N

Contact Now

FPD473M FPD473Z One-Way Sprag Clutch Bearing / Indexing Freewheel Clutch Unit

Product Description

Features of FPD Complete Freewheel Clutch Unit

Characteristics

Width:34 mm

Operating temperature:max. 100° C

Lubrication

Operative lifetime oil lubrication

Installation

Installation tolerances

Shaft h5; hub H6

Catalogue of FPD Complete Freewheel Clutch Unit for your choice

Model	d	D	W	^Tnom	ⁿmax	^Cdyn.	^Cstat.	Weight	Item no.
Model	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	Item no.
FPD 427 M	15	31	34	94	2,000	7,679	6,397	0.09	306516
FPD 427 Z	15	31	34	84	2,000	7,679	6,397	0.09	306517
FPD 432 M	20	36	34	133	1,800	8,104	7,241	0.12	306518
FPD 432 Z	20	36	34	121	1,800	8,104	7,241	0.12	306519
FPD 437 M	25	41	34	176	1,700	9,201	8,142	0.15	306520
FPD 437 Z	25	41	34	160	1,700	9,201	8,142	0.15	306521
FPD 442 M	30	46	34	223	1,500	10,247	10,708	0.18	300696
FPD 442 Z	30	46	34	208	1,500	10,247	10,708	0.18	300697
FPD 448 M	35	53	34	286	1,300	11,642	13,440	0.23	306524
FPD 448 Z	35	53	34	262	1,300	11,642	13,440	0.23	306525
FPD 453 M	40	58	34	343	1,200	11,417	13,577	0.26	300702
FPD 453 Z	40	58	34	314	1,200	11,417	13,577	0.26	300700
FPD 463 M	50	68	34	461	1,100	13,070	17,063	0.34	306534
FPD 463 Z	50	68	34	428	1,100	13,070	17,063	0.34	306535
FPD 473 M	60	78	34	588	1000	14128	19896	0.41	306536
FPD 473 Z	60	78	34	543	1000	14128	19896	0.41	306537

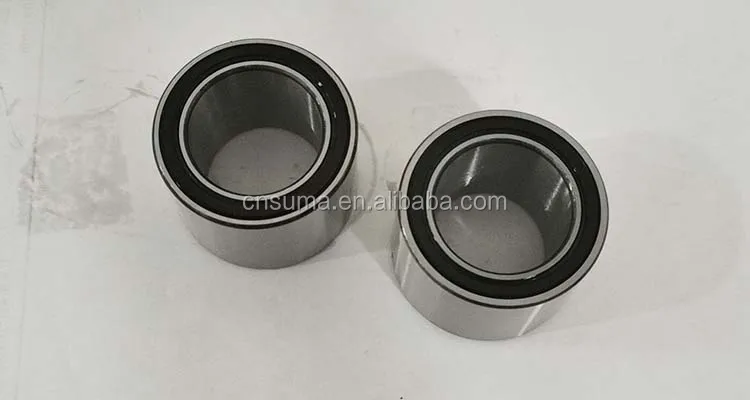

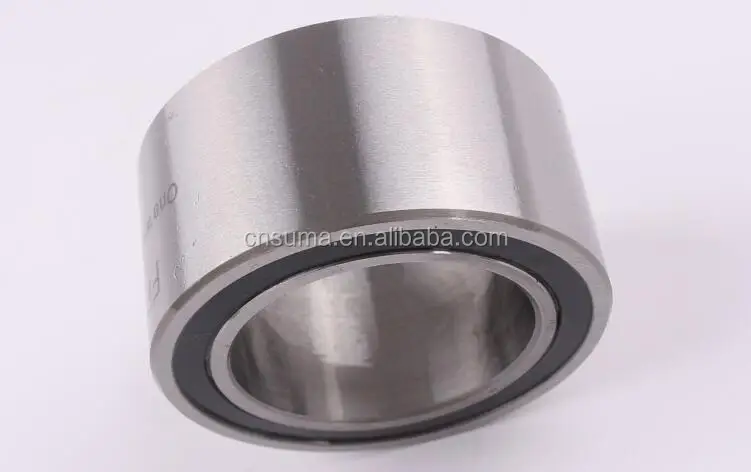

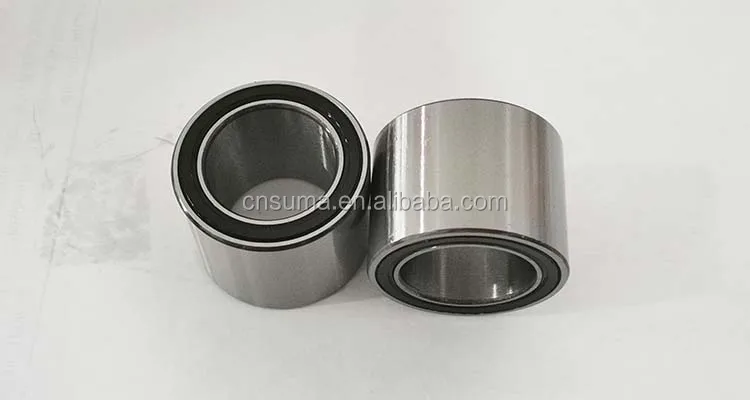

Detailed Images

FAQ

Q: How do you pack the goods?

Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
